Carbs, Proteins, Lipids & Nucleic Acids - P2
Nucleic Acids
Your genetic material is made of DNA (deoxyribonucleic acid), the molecule which contains the code for making an operating your cells and your entire body. Nucleic acids are polymers made up of nucleotide monomers. Each monomer of nucleic acid is a nucleotide, and consists of 3 portions:
  • a pentose sugar
  • one or more phosphate groups
  • one of five cyclic nitrogenous bases (adenine, cytosine, guanine, thymine & uracil)

In contrast, DNA molecules are double stranded, with hydrogen bonds attracting the complimentary bases that hold the two phosphate-sugar strands together. The hydrogen bonds also twist the phosphate-deoxyribose backbones into a double helix.

Chemical Structure of DNA
SPO VIRTUAL CLASSROOMS
PAGE 2                                                            <  Back to Page 1
Labelled Illustration of the Structure of Nucleic Acids RNA and DNA
Need Help with Chemistry?

SPO offers free PowerPoint lectures, sample test
questions, review questions and assignments on many different science topics.

Below are links to those that relate to chemistry:

 1. ​Chemistry Main Page

2. Inorganic Chemistry

3. Organic Chemistry
Chemicals in Flasks, Joe Sullivan
Proteins
Also known as polypeptides, these large organic molecules have many roles within living cells. They are part of cell membranes, act as enzymes in cellular reactions, and are vital molecules of our immune system, protecting us from invading microbes.
Proteins are composed of monomers called amino acids joined together with peptide bonds.

These peptide chemical bonds link amino acids together into chains, like the beads on a long necklace. A dipeptide has two amino acids linked together, a polypeptide, more than two.

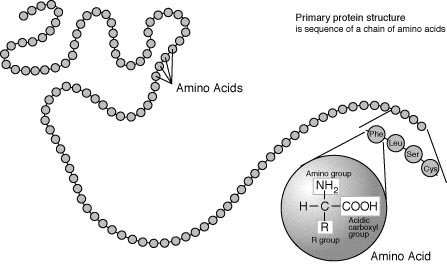

Protein Primary Structure Illustration
Primary structure of a protien, amino acids linked together, like beads on a string.

BACK TO Eukaryotic Cell - Page 1
​Page last updated: 10/2016
Continued ...
Learn about Lipids
Go to PAGE 3 >
Although there are hundreds of different amino acids, most organisms use only 21 to build proteins.

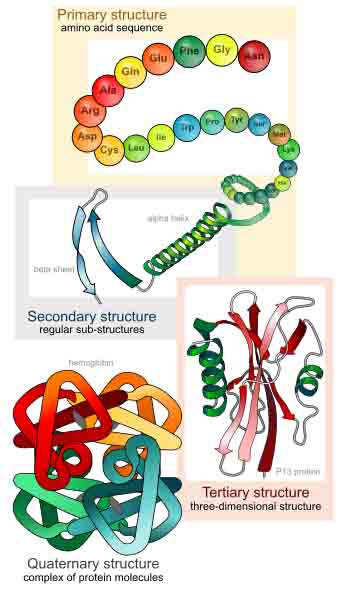

Four levels of protein structure: Primary, secondary, tertiary and quaternary.
Nucleotides are linked by covalent bonds between the phosphate of one nucleotide and the sugar of next, forming a phosphate-sugar backbone. Nitrogenous bases extend from the backbone like teeth of a comb. Ribonucleic acid (RNA) is a single stranded molecule involved in the production of cellular proteins.
