Gram Stain of Staphylococcus Viewed @ 1000xTM

How to View Bacteria Under Oil Immersion

Lab Notes from Science Prof Online



Intense heat kills the microbes and firmly attaches them to the slide, so that the sample is not washed away when the sample is stained.
Article Summary: The oil immersion objective lens must be used in order to see individual bacteria through a light microscope. Here are the steps needed to get a bacterial sample in focus.
How to Use Oil Immersion to View Bacteria
Virtual Microbiology
Classroom







You have free access to a large collection of materials used in a college-level introductory microbiology course. The Virtual Microbiology Classroom provides a wide range of free educational resources including PowerPoint Lectures, Study Guides, Review Questions and Practice Test Questions.

Prokaryotic Cell, Mariana Ruiz
Oil immersion objective of a compound light microscope
Oil immersion objective of a compound light microscope.
How oil immersion compensates for refraction of light
How Immersion Oil Reduces Refraction
Path of rays with immersion oil (yellow, left half) and without (right half). Rays (black) coming from specimen (red), when going through cover slip (top orange) can enter objective (dark blue) only when immersion is used. Otherwise, refraction at coverslip-air interface causes ray to miss objective.
​Page last updated: 6/2015

Bacterial Cells Viewed Under Oil Immersion Button
SCIENCE PHOTOS
The easiest way to see bacteria through a microscope is to prepare a bacterial smear. A smear is a bacterial sample mixed into a drop of water on a microscope slide and then heat fixed. By placing the slide on a microincinerator tray or gently waving slide over Bunsen burner flame until dry.
ANAT & PHYSGENERAL BIOCELL BIOMICRO 8wkMICRO 15wkINSTRUCTORS

facebook link
SPO twitter
Tamislinked in page
SPO VIRTUAL CLASSROOMS
Kids of All Ages Can Explore Science Together At Home Kids of All Ages Can Explore Science Together At Home
Kids of All Ages Can Explore Science Together At Home Kids of All Ages Can Explore Science Together At Home Kids of All Ages Can Explore Science Together At Home
Kids of All Ages Can Explore Science Together At Home Kids of All Ages Can Explore Science Together At Home Kids of All Ages Can Explore Science Together At Home Kids of All Ages Can Explore Science Together At Home
Kids of All Ages Can Explore Science Together At Home Kids of All Ages Can Explore Science Together At Home Kids of All Ages Can Explore Science Together At Home
Kids of All Ages Can Explore Science Together At Home Kids of All Ages Can Explore Science Together At Home
Kids of All Ages Can Explore Science Together At Home
Kids of All Ages Can Explore Science Together At Home Kids of All Ages Can Explore Science Together At Home
Instructor's Corner
there is a total 1000X increase in the apparent size of the object being viewed. The oil immersion lens is required for viewing individual bacteria.

Steps to View Bacteria Under Oil Immersion
(Click link for downloadable pdf file)

  • Place the stained bacterial smear slide in the mechanical stage apparatus. Do not use a coverslip.
  • Focus the 100xTM low power objective lens on the smear and examine.
  • Cover the 400xTM objective lens with a finger cot to prevent this lens from coming in contact with the oil.
  • Place a drop of immersion oil directly on the sample.
  • Turn nosepiece until 1000xTM objective lens snaps into position.
  • Examine the lens; it should almost touch the slide and the oil should fill the space between the slide and the lens.
  • While looking through the eyepiece, use only the fine adjustment knob to move the lens up and down in tiny increments; this action should bring the bacteria into focus.
  • If the sample is not visible after adjustment of the fine focus, try adjusting the lighting.
  • If this fails, switch back to the 10X objective lens, refocus, and try the oil immersion lens again.

Some compound microscopes also have an oil immersion objective lens, which has a magnification power of 100X. Since the magnification of the objective lenses is multiplied by the 10X magnification of the ocular lens,

Tabellaria diatom algae @400xTM
Sources & Resources
  • Schauer Cynthia (2007) Lab Manual to Microbiology for the Health Sciences, Kalamazoo Valley Community College.
  • Bauman, R. (2014) Microbiology with Diseases by Taxonomy, 4th ed., Pearson Benjamin Cummings.

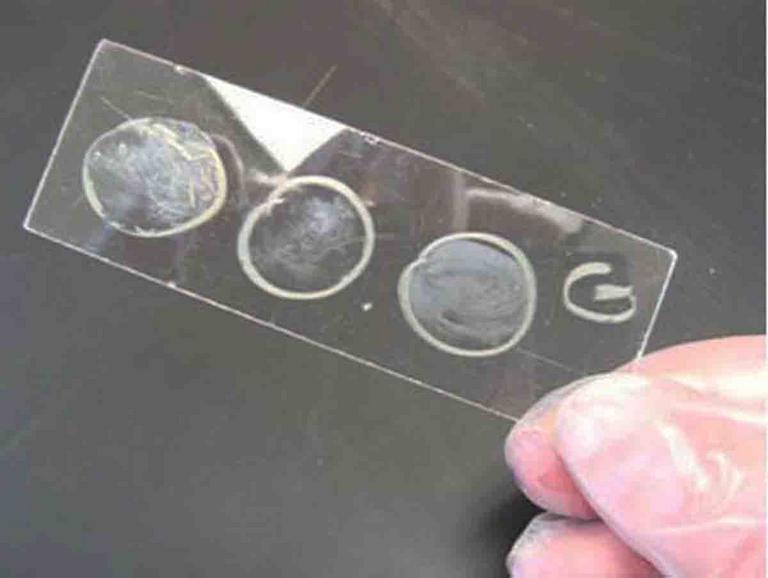

Above: Three heat fixed bacterial samples on a microscope slide.

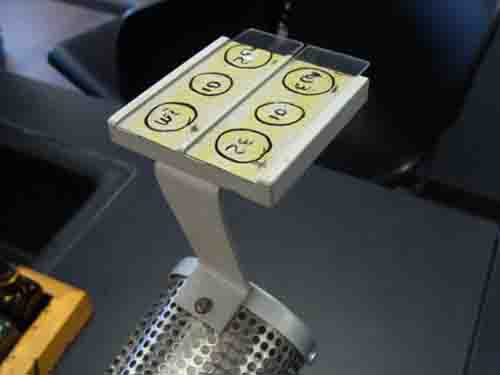

Below: Bacterial smear heat fixing on the hot platform of a miroincinerator.
