Use of Liquid Nutrient Broth Media
for Growing Bacteria
For scientists to experiment with and learn more about microbes, they must be able to grow these tiny organisms in a laboratory. This is done using growth media that provides microbes with water, food and a suitable environment
to grow in.
Article Summary: Broth is a nutrient-infused liquid medium used for growing bacteria. Here is a summary of the advantages and disadvantages of this type of bacterial growth medium.
Liquid Nutrient Broth Media for Growing Bacteria
Sterile liquid broth media in test tubes.
SCIENCE PHOTOS
SPO VIRTUAL CLASSROOMS
| ||||||
Media are initially sterilized, then inoculated with the bacteria of interest, and finally incubated for twenty four hours or more, to encourage bacterial growth.
Continued ...
See Page 2 for more photos of different types of bacteria growing in liquid media!
Broth and Agar Bacterial Growth Media
The two main types of bacterial growth media used are liquid broth and solid, Jell-o-like agar. Each has specific advantages and disadvantages. The growing environment used will depend on what the researcher wants to do with, or learn from, the microbes.
Nutrient Broth Bacterial Growth Medium
Nutrient broth is typically made of a powdered beef extract that contains peptones (broken down proteins). The powder is dissolved in water, put in test tubes, and sterilized.
Broth is convenient, as most bacteria will grown in this type of medium, even those with widely different aerotolerances (oxygen requirements).
Different Types of Oxygen Requirements of Bacteria

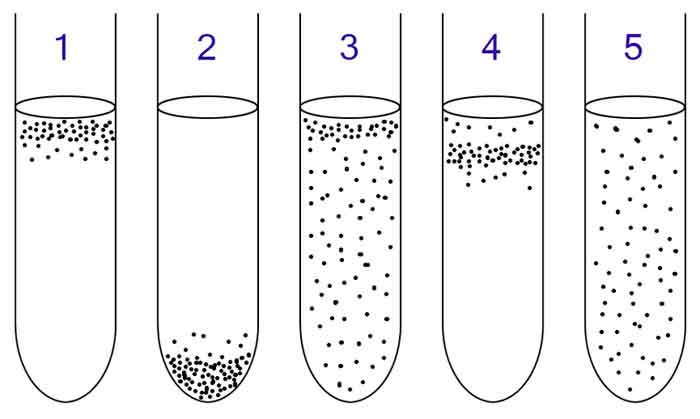

Unlike animals, bacteria do not all require oxygen. Some bacteria are poisoned by oxygen, others can take it or leave it. Liquid broth allows bacteria to grow at varying oxygen levels, since the oxygen available decreases as the depth of the broth increases. See the test tube diagram below for an illustration of the growth patterns of microbes with different oxygen requirements:
- Obligate aerobic bacteria, those that must have oxygen to extract energy from food, will gather at the top of the test tube, near the broth’s surface, to absorb maximum amount of oxygen (1 in mage below).
- Obligate anaerobic bacteria, those killed by oxygen, will gather at the bottom of the test tube, staying as far away from oxygen as possible (2).
- Facultative bacteria, those that can live with or without oxygen, will gather mostly at the top, since aerobic respiration is the most energy efficient way to turn food into energy; but since lack of oxygen does not hurt these microbes, they can survive anywhere in the broth (3).
- Microaerophiles gather at the upper part of the test tube but not at the top. These microbes require oxygen, but at concentrations lower than those found in the atmosphere (4).
- Aerotolerant bacteria are not affected at all by oxygen, so they can be found evenly spread along the test tube (5).
Loop Being Used to Inoculate the Solid Surface of Tryptic Soy Agar in a Petri Dish.
Page last updated: 8/2016
Gently swirl liquid cultures to resuspend any bacteria that may have settled to the bottom of the tube.
